UV Series

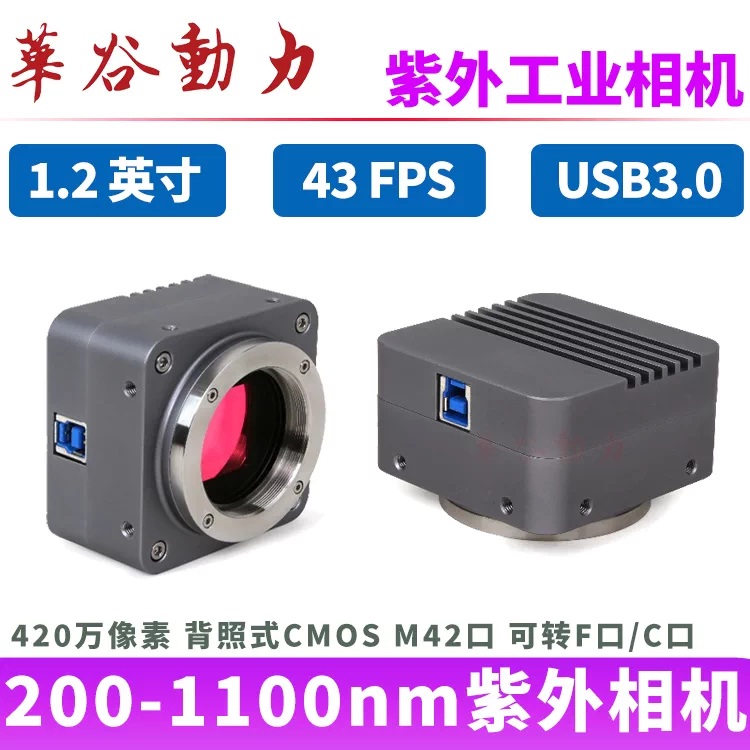

WP-UV420M4.2 MP UV Industrial Camera
The UV band reveals what visible light cannot: micro-scratches on polished surfaces, fingerprint residue, UV fluorescence inspection. A narrow but irreplaceable audience — supplied on demand.
- 4.2 MP
- UV band
- < 400 nm
- response
- On demand
- supply
Request a QuoteDownload Datasheet — Datasheet in preparation — request via inquiry
Full Specifications
Source: manufacturer manual V24.05 · 2026-08
Imaging
| Resolution | 4.2 MP |
|---|---|
| Spectral response | 200 – 1100 nm |
| Sensor | 1.2" back-illuminated, high QE |
Mechanical & Environmental
| Lens mount | C-mount |
|---|---|
| Certifications | CE / FCC / RoHS |
Applications
Recommended Accessories
UV lens + UV light source
A UV system needs all three: UV camera, UV lens, UV illuminator. Configured as a set per order.
Request a Quote
Tell us your scene (field of view, cycle time, smallest defect) — we propose lens and lighting for WP-UV420M, quote within 24 hours.
