WP-GX280 · 64 × 64 × 61.7 mm · < 550 g
WP-GX2802.8 MP 10GigE Global-Shutter Ultra-High-Speed Camera
When the defect is 0.05 mm and the line will not slow down: 1936×1464 global-shutter pixels at 410 fps full resolution. Electronics assembly, pharma inspection and print verification at full production speed.
- 2.8 MP
- 1936×1464
- 410 fps
- @ full res
- 2/3"
- CMOS
- 4.5 µm
- pixels
- 1 GB
- buffer
- 10GBase-T
- copper
Full Specifications
Source: manufacturer manual V24.05 · 2026-08
Imaging
| Resolution | 1936 × 1464 (2.8 MP) |
|---|---|
| Frame rate | 410 fps @ full resolution |
| Sensor | 2/3" CMOS, global shutter |
| Pixel size | 4.5 × 4.5 µm |
| Active area | 8.7 × 6.6 mm |
| Exposure time | 1 µs – 1048 ms |
| Sensitivity | 1677 mV (1/30 s) |
| Bit depth | 12 bit |
| Output formats | Mono8 / Mono12 · Bayer8 / Bayer12 |
| Spectral response | Mono 380–1050 nm · Color 380–650 nm |
| Frame buffer | 1 GB (burst acquisition / packet re-send) |
Interface & Triggering
| Data interface | 10GBase-T (compatible 100M / 1G / 2.5G / 5G) |
|---|---|
| GPIO / Trigger | 2-in / 2-out + 1 configurable; trigger & strobe sync |
| Acquisition modes | Continuous · software trigger · hardware trigger |
Mechanical & Environmental
| Lens mount | C-mount (2/3" format — standard C-mount optics compatible) |
|---|---|
| Dimensions | 64 × 64 × 61.7 mm |
| Weight | < 550 g |
| Power | DC 12 V, < 12 W |
| Operating temperature | 0 – 50 °C |
Software

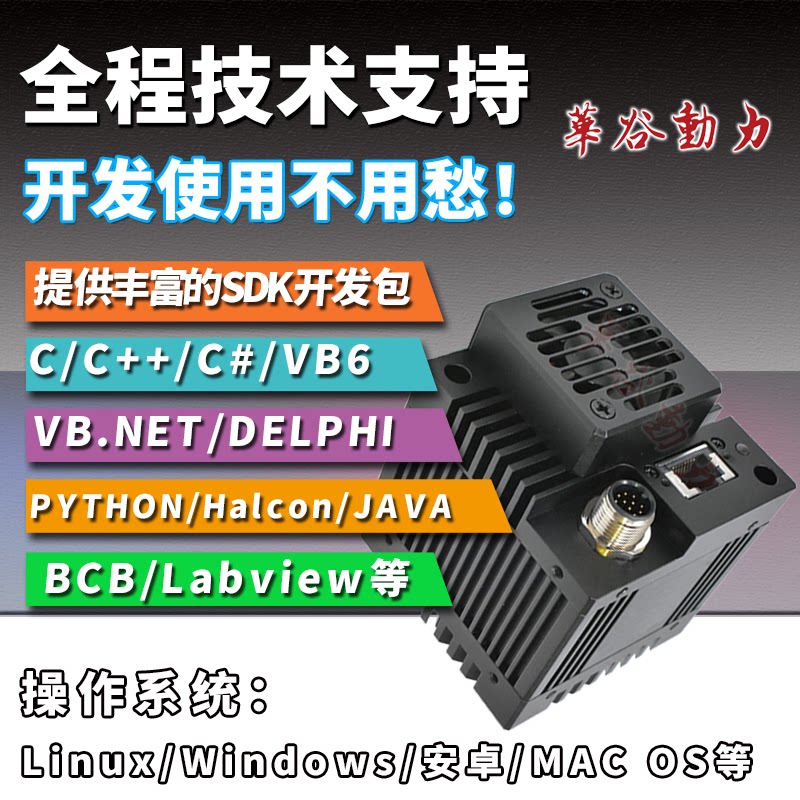

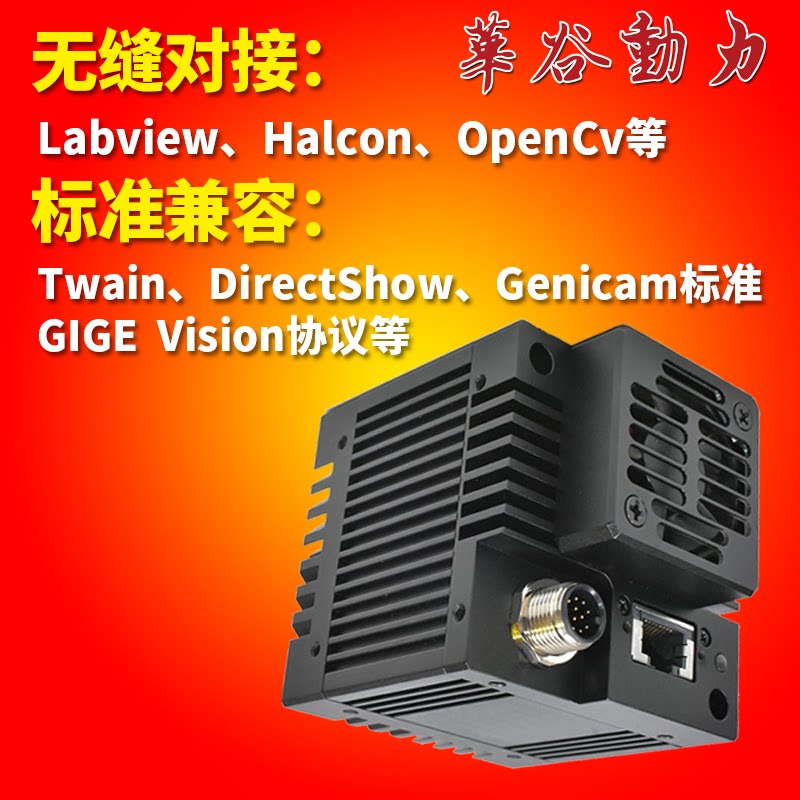

| Software support | GigE Vision / GenICam / Halcon / LabVIEW / DirectShow |
|---|---|
| OS support | Windows / Linux / ARM Linux / Android / macOS |
| Certifications | CE / FCC / RoHS |
Downloads
Applications
Recommended Accessories
5 MP-class FA lens
Match the 2/3" sensor with ≥5 MP optics so every pixel counts. Focal length selected per your FOV.
10G NIC + Cat 6a cable
PCIe 10-gigabit adapter and shielded Cat 6a up to 100 m. Required for full-rate capture.
12 V PSU + GPIO cable
Locking power connector and opto-isolated trigger/strobe harness.
High-power strobe
Flat, shiny and transparent parts each need different light paths. Send a sample photo and we will propose the lighting plan.
Series Comparison
| Model | WP-GX050 | WP-GX180 | WP-GX280 |
|---|---|---|---|
| Resolution | 816 × 624 (0.5 MP) | 1600 × 1100 (1.8 MP) | 1936 × 1464 (2.8 MP) |
| Frame rate | 1,600 fps @ full resolution | 665 fps @ full resolution | 410 fps @ full resolution |
| Sensor | 1/1.7" CMOS, global shutter | 1.1" CMOS, global shutter | 2/3" CMOS, global shutter |
| Pixel size | 9.0 × 9.0 µm | 9.0 × 9.0 µm | 4.5 × 4.5 µm |
| Frame buffer | 1 GB (burst acquisition / packet re-send) | 1 GB (burst acquisition / packet re-send) | 1 GB (burst acquisition / packet re-send) |
| Data interface | 10GBase-T (compatible 100M / 1G / 2.5G / 5G) | 10GBase-T (compatible 100M / 1G / 2.5G / 5G) | 10GBase-T (compatible 100M / 1G / 2.5G / 5G) |
| Lens mount | C-mount (1/1.7" format — standard C-mount optics compatible) | C-mount (1.1" sensor — requires ≥1.1" image-circle optics) | C-mount (2/3" format — standard C-mount optics compatible) |
Request a Quote
Tell us your scene (field of view, cycle time, smallest defect) — we propose lens and lighting for WP-GX280, quote within 24 hours.
