USB3 Series

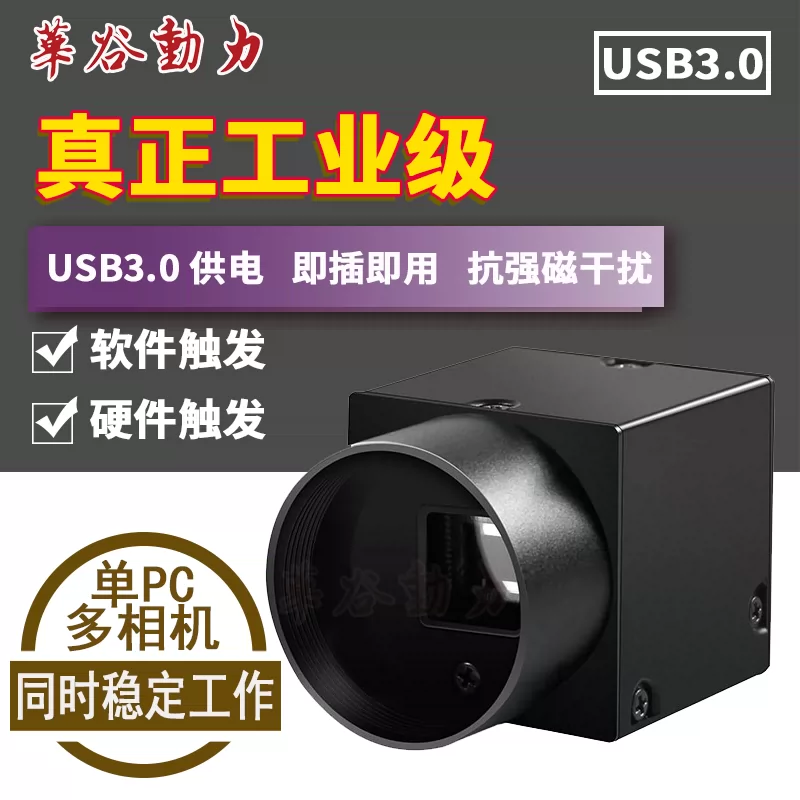

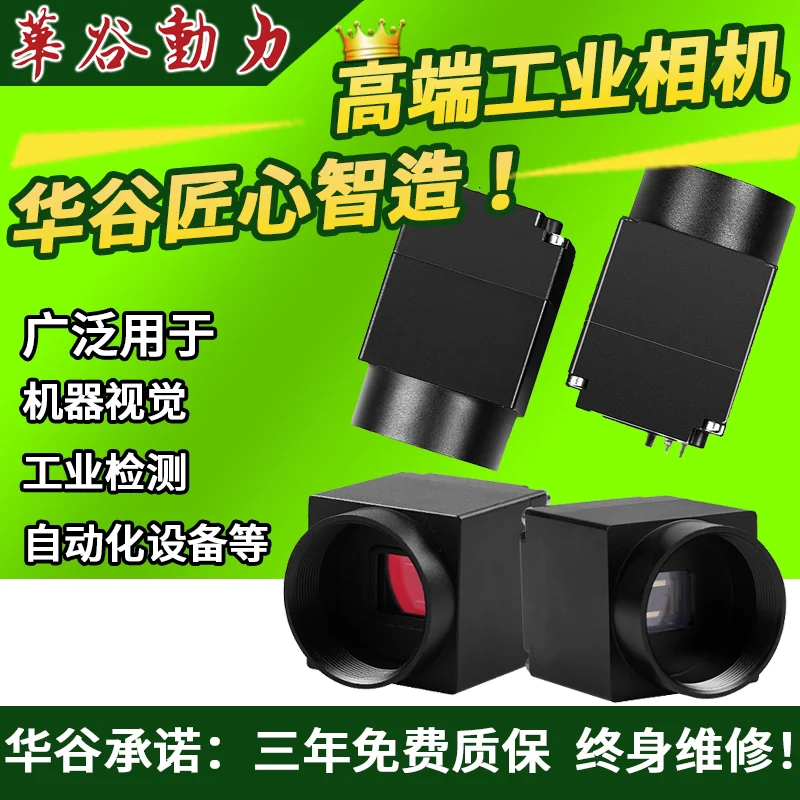

WP-US1301.3 MP USB3.0 Global-Shutter Industrial Camera
The most-used spec for flying-shot inspection: global shutter freezes motion, USB3.0 is plug-and-play, and it starts around $100. The default pick for labs, bench inspection stations and small production lines.
- 1.3 MP
- global shutter
- 213 fps
- @ full res
- USB3.0
- plug & play
WP-US130 · Color · Bayer outputWP-US130M · Mono · NIR-enhanced
Request a QuoteDownload Datasheet — Datasheet in preparation — request via inquiry
Full Specifications
Source: manufacturer manual V24.05 · 2026-08
Imaging
| Resolution | 1.3 MP |
|---|---|
| Frame rate | 213 fps @ full resolution |
| Shutter | Global |
Interface & Triggering
| Data interface | USB3 Vision |
|---|---|
| Max cable length | 3–5 m (passive) |
Mechanical & Environmental
| Lens mount | C-mount |
|---|---|
| Certifications | CE / FCC / RoHS |
Software
| Software support | SDK: Halcon / OpenCV / LabVIEW |
|---|---|
| OS support | Windows / Linux / ARM |
Applications
Recommended Accessories
C-mount FA lens
Focal length per your field of view and working distance — tell us the target size and we pick.
USB3 cable (locking)
Shielded USB3 with screw-lock connector against vibration loosening.
Series Comparison
Request a Quote
Tell us your scene (field of view, cycle time, smallest defect) — we propose lens and lighting for WP-US130, quote within 24 hours.
